Solenoid Valves

Aluminium Solenoid Valves

Aluminium solenoid valves 2/2, 3/2, 5/2 and 5/3 way are ideally suited for compressed air and inert gas applications though out the pneumatics, Gas and Dust Collecting industries. Typical applications include ON/OFF and diverting compressed air control for production machines, factory automation, cylinder control, valve and actuator control, Natural Gas Control for kitchens, gas burners and boilers and Gas furnaces.

Typical Aluminium Solenoid Valves.

3/2 way solenoid valve
3/2 way Aluminium Solenoid Valve Manifold System

Aluminium 3/2 Way Solenoid Valves are available normally closed or normally open, offering one of the industries most cost effective compact 3/2 way solenoid valves. These Aluminium Solenoid valves typically can be mounted independently or simply bolted together to generate a common manifold system reducing time, cost, pipework and fittings. This compact design has the advantages of using Low Power 5 watt Coils reducing power consumption and extending coil life with the option of fitting the ATEX EexmIIT4 encapsulated coils for more hazardous area applications.

5/2 way spring return pneumatic solenoid valve

Aluminium 5/2 Way Spring return Pneumatic Solenoid Valves have 5 ports with 2 positions with the spring return system. This is one of the Pneumatic Industries most popular Aluminium 5/2 way solenoid valves and they can be mounted to aluminium manifold blocks for ease of installation and maintenance. These are ideal for compressed air control for pneumatic cylinder and air actuator control offering fail safe open or closed positioning depending on pipework set up. This compact design has the advantages of using Low Power 5 watt Coils reducing power consumption and extending coil life with the option of fitting the ATEX EexmIIT4 encapsulated coils for more hazardous area applications.

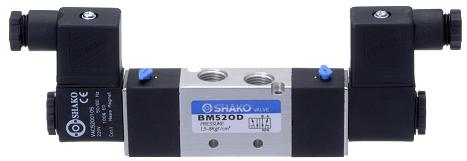

5/2 way double solenoid pneumatic solenoid valve

Aluminium 5/2 Way Double Acting Pneumatic Solenoid Valve have 5 ports with 2 positions and is fitted with twin coils. This is one of the pneumatic industries most popular Aluminium 5/2 way double solenoid valve. These are ideal for compressed air control for pneumatic cylinder and air actuator control offering stay open or stay closed function.

5/3 way double pneumatic solenoid valve

Aluminium 5/3 Way Double Acting Pneumatic Solenoid Valve has 5 ports with 3 positions and with twin coils offering one of the pneumatic industries most popular Aluminium 5/3 way solenoid valve. These are also ideal for compressed air control for pneumatic cylinder and air actuator control offering a stay put function as the fail safe position is stop even in mid stroke or actuator mid turn position . This compact design has the advantages of using Low Power 5 watt Coils with reduced power consumption, extending coil life and are available with ATEX coils for more hazardous area applications.

5/2 Way Spring Return Namur Mount Solenoid Valve

Namur Mount Aluminium 5/2 Way Spring return Pneumatic Solenoid Valves have 5 ports with 2 positions with the spring return system. This is one of the Actuator Control Industries most popular Aluminium 5/2 way solenoid valves as they can be quickly and easily mounted directly to the actuated valve using the Namur mount system reducing installation and maintenance time and costly additional external pipework. These are ideal for compressed air control for pneumatic air actuators offering fail safe open or closed positioning depending on pipework set up. This compact design has the advantages of using Low Power 5 watt Coils with reduced power consumption, extending coil life and are available with ATEX coils for more hazardous area applications.

5/2 Way Double Acting Namur Mount Solenoid Valve

Namur Mount Aluminium 5/2 Way Double Acting Solenoid Valves have 5 ports with 2 positions with twin coil. This is one of the actuator control industries most popular Aluminium 5/2 Double Acting solenoid valve as they can be quickly and easily mounted directly to the actuated valve using the Namur mounting system reducing installation and maintenance time and costly additional external control pipework. These are ideal for compressed air control for pneumatic air actuators offering stay open or stay closed function. This compact design has the advantages of using Low Power 5 watt Coils with reduced power consumption, extending coil life and are available with ATEX coils for more hazardous area applications.

EN161 Gas Safe Solenoid Valves

EN161 Gas Board Approved 2 way solenoid Valves are typically made for Aluminium they are direct acting for low pressure town and Mains Gas Applications, and come in two main options.

Normally Closed (Fail safe Closed) Gas solenoid valves

Power to open or power failure closed (EN161 Failsafe closed solenoid valves) sizes range from 1/4 BSP Thread through to 2" BSP Thread or Flange DN 50 mm to DN 250 mm.

Manual Reset Gas Solenoid Valves.

Manual reset gas EN161 solenoid valves require Power and a Manual Pull to open, power ON keeps the valve open but open power failure this Aluminium Gas solenoid valve will stay closed even when power is reapplied. This is a safety system to prevent mains gas supply after power failure as the pilot flame may also be extinguished.

Dust Collecting Pneumatic and Solenoid Operated Valves

Aluminium Dust Collecting 2/2 way Valves are all operated by compressed air supply and come either with or without solenoid valve controller. Sizes range from  3/4" to 3" BSP Threaded ends or 25 mm and 40 mm compression ends.

The dust collecting valve stays in the open position and utilises the compressed air supply rapidly close, minimising compressed air consumption. The robust diaphragm is specially designed for dust capture with angle flow design offering an optimised maximum flow reducing clogging and optimising efficiency for demanding dust collection applications
