Solenoid Valve : Oil and Gas Industries.

Solenoid valves for the Oil, Gas and Petrochemical Industries are designed to control combustion systems pilot and main line fuel and control line applications. Typical Fuel, Gas and Oil solenoid valves are available in 2-way normally closed, 2 way normally open, 3 way normally closed, 3 way normally open and 3 way universal function with either servo pilot pressure assisted, direct acting or assisted lift / kick pilot operation.

Common materials of construction for onshore and off shore petro-chemical applications for crude oil, cracking gases and hydrocarbons are typically 316 Stainless Steel however even Brass or aluminium bodied solenoid actuated valves can be used for compressed air control for pneumatic valve actuation. Specialised options have been designed to meet the needs of the chemical processing and oil industries which include junction boxes, pipe taps, visual position indication, proof of closure or open ATEX rated position feed back switches, ATEX solenoid explosion and flame proof protection, Total certified corrosion protection GS EP CAR 350, helium leak and pressure testing and a wide range of industry specific certifications with world leading agency approvals including ATEX EEx d II 2 G/D IP6x, UL/CSA, 3.1b material, PED pressure equipment directives 97/23/CE  to name but a few.

Typical pipe connections are available including threaded BSP or NPT from 1/8", 1/4", 3/8", 1/2", 3/4", 1", 11/4", 11/2" and 2", or flanged PN16, PN40, PN100 to PN300 and raised face ANSI2500Lb or more.

Here below we have a few of the common examples of typical solenoid valves used in the oil, Gas and Petrochemical, on shore, offshore, refinery and cracking industries.

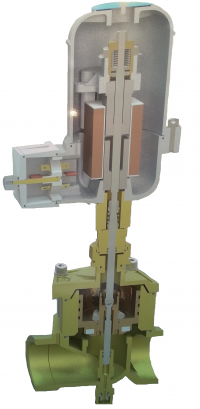

solenoid valves designed for the petro-chemical industry

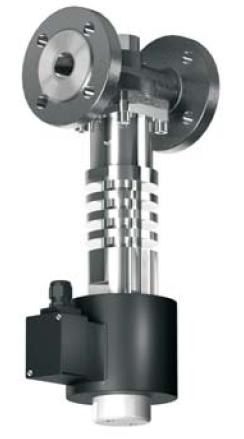

High pressure high performance high specification 2 way solenoid valve for 100% total 10 year guaranteed reliability.

Body material: 316L stainless steel

Port sizes: 1/2,3/4,1,11/4,11/2 or 2" BSP or NPT thread

Flange: PN100, PN150, PN300 all other options available upon request

Orifice: 15-50mm

Pressure: 0 - 300 bar or 0.5 - 300 bar

Function: 2/2 way normally closed or 2/2 way normally open

Operation: direct acting or servo pilot pressure assisted

Seals: PTFE with NBR, EPDM or FKM, or metal / metal sealing

Media: Any gas or liquid up to 2000 CST, aggressive and corrosive media

Protection: IP65 safe area, ATEX EEx d IIC T 1, T2, T3, T4, T5 and T6

Control voltage: all available from 12 volt to 415 volt AC or DC

Options: open and closed position feed back switches IP65 or ATEX, composite stem seals, thermal protection for media up to +150C, High ambient temperature protection up to +70C, chromium bichromate anti corrosion protection, offshore PO5 paint.

Certification: ATEX EEx d IIC T70C "Ex" II G/D, PED 97/23/CE category 3.3, CE, TOTAL oil platform corrosion protection GS EP CAR 350, 3.1b material, hydrostatic pressure test.

High pressure solenoid valves Brass or Stainless Steel 2/2 and 3/2 way.

Body material: brass or stainless steel

Port sizes: 1/8, 1/4,3/8,1/2,3/4 and 1" BSP or NPT thread

Flange: DN10-DN50 PN16, PN40, PN100

Orifice: 0.5 - 25mm

Pressure: 0 - 500 bar

Function: 2/2 way normally closed, option 2/2 way normally open

Operation: direct acting or servo / pressure assisted

Seals: PTFE with NBR, EPDM, FKM, Voltalef or PTFE only

Media: air, water, light oil, crude oil, gas or liquid under 50 CST, petrol diesel fuels and oils.

Protection: IP65 safe area or ATEX EEx d II C T6 explosion proof

Control voltage: 12vdc, 24vdc, 48vdc, 80vdc, 110vdc, 220vdc or 12vac, 24vac, 48,vac, 110vac, 115vac 120vac, 200vac, 220vac, 230vac, 240vac and 380vac 50/60Hz

Options: manual over ride, oil and grease free, special connections and custom made options available.

Certifications: 3.1b material, pressure test, leak test, function test, ATEX, IP65, conformity, PED 97/23/CE

Direct acting 2/2 way solenoid valves

Body material: Red brass, 304 or 316 Stainless Steel

Port thread sizes: 1/2,3/4,1,11/4,11/2 and 2" BSP or NPT thread

Orifice: 15-50mm

Pressure: 0 to 16 or 25 bar

Function: 2/2 way normally closed, option 2/2 way normally open

Operation: direct acting

Seals: NBR, FKM, EPDM or PTFE

Media: crude oil, vacuum, LPG, Natural gas, water, diesel, petrol, hydrocarbons, air, cracked gases or liquids up to 20 CST.

Protection: IP65 option ATEX EEx em II T4 or EEx d IIC T6

Control voltage: 24vdc, 24vac, 110vac or 230vac 50/60Hz other options upon request

Options: Open and closed position feed back volt free switches either mechanical or proximity, manual over ride, oil and grease free.

Certifications: ATEX,IP65, PED 97/23/CE, conformity, pressure test, leak test, 3.1b material.

Direct acting 2/2 way flanged solenoid valves

Body material: Cast Iron, Cast Steel, 304 or 316 stainless steel

Flange sizes: DN15 to DN150 other sizes up to DN300 available

Flange: PN16, ANSI150Lb, PN40

Orifice: 15-50mm

Pressure: 0 to 16 or 25 bar

Function: 2/2 way normally closed, option 2/2 way normally open

Operation: direct acting

Seals: NBR, FKM, EPDM or PTFE

Media: crude oil, vacuum, LPG, Natural gas, water, diesel, petrol, hydrocarbons, air, cracked gases or liquids up to 20 CST.

Protection: IP65 option ATEX EEx em II T4 or EEx d IIC T6

Control voltage: 24vdc, 24vac, 110vac or 230vac 50/60Hz other options upon request

Options: Open and closed position feed back volt free switches either mechanical or proximity, manual over ride, oil and grease free.

Certifications: ATEX, IP65, PED 97/23/CE, conformity, pressure test, leak test, 3.1b material.

petrochemical industry coaxial valve

Coaxial solenoid operated valves

Body material: Steel, Brass, 304 or 316 Stainless Steel

Port thread sizes: 1/4, 3/8,1/2,3/4,1/1/4, 11/2 or 2" BSP or NPT thread

Flange: PN16, PN40, PN100

Orifice: 2 - 6mm, 10 - 50mm

Pressure: 0 to 100 bar

Function: 2/2 normally closed option 2/2 normally open or 3/2 way

Operation: Direct acting

Seals: PTFE and FKM standard, options EPDM, NBR and all PTFE

Media: crude oil, diesel, petrol, refined gases and liquids up to 600 CST viscosity

Protection: IP65 standard option ATEX EExmIIT4

Control voltage: 24vdc or 230vAC standard, options 12vdc, 24vac, 110vac, 80vdc upon request.

Options: Open and closed position feedback, mounting brackets, oil and grease free, manual over ride.

Benefits: bi directional flow control, suited to thick glutinous liquids and contaminated or aggressive media, high flow, reliable control valve.

Certifications: 3.1b material, ATEX, IP65, function and leak testing, PED 97/23/CE.

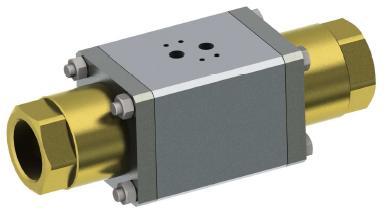

air operated coaxial valve

Coaxial pneumatically operated valves

Body material: Steel, Brass, 304 or 316 Stainless Steel

Port thread sizes: 1/4, 3/8,1/2,3/4,1/1/4, 11/2 or 2" BSP or NPT thread

Flange: PN16, PN40, PN100

Orifice: 2 - 6mm, 10 - 50mm

Pressure: 0 to 160 bar

Function: 2/2 normally closed option 2/2 normally open or 3/2 way

Operation: Direct acting

Seals: PTFE and FKM standard, options EPDM, NBR and all PTFE

Media: crude oil, diesel, petrol, refined gases and liquids up to 600 CST viscosity

Protection: IP65 standard option ATEX EExmIIT4

Control: compressed air 5-8 bar remote or namur mount.

Options: Open and closed position feedback, mounting brackets, oil and grease free, manual over ride.

Benefits: bi directional flow control, suited to thick glutinous liquids and contaminated or aggressive media, high flow, reliable control valve.

Certifications: 3.1b material, function and leak testing, PED 97/23/CE.

3 way solenoid control valve for pneumatic valve actuator Model 306 and 309

Body: Brass or 316 stainless steel

Port sizes: 1/4", 3/8" or 1/2" BSP or NPT thread

Orifice: 6mm or 9mm

Pressure: 0 to 10 bar

Function: 3/2 way universal (normally closed or normally open or diverting)

Operation: direct acting

Seals: NBR or FKM

Media: compressed air or inlet gases

Protection: IP65 safe area or ATEX explosion proof EEx d IIC T4, T5 or T6 with conduit entry M20x1.5mm or 3/4 NPTF

Control voltage: 12vdc, 24vdc, 48vdc, 80vdc, 110vdc, 220vdc or 12vac, 24vac, 48vac, 110vac, 120vac, 220vac, 230vac or 240vac 50/60Hz.

Options: Manual reset, manual over ride, epoxy coating, flange connections, degreasing for oxygen use

Certifications: 3.1b material, ATEX, function and leak testing, PED 97/23/CE.
