High Pressure Solenoid Valves

High Pressure solenoid valves are generally available from miniature through to large BSP, NPT thread or flanged with function 2/2 or 3/2 way normally open or normally closed, operation Direct Acting or Pressure Assisted materials Brass or Stainless Steel for pressures up to 500 Bar. Read more here...

High pressure solenoid valves are typically found in high pressure processing systems, petrochemical systems, cracking plants, refineries, high pressure natural gas installations, high pressure gas storage systems, offshore oil and  gas rig applications for the on/ off (open or closed) and  diverting control of high pressure liquid and gas media automation systems.

High pressure and special application solenoid valves need to be chosen with great care, taking consideration for system minimum and maximum pressure,temperature,media compatibility, flow requirements and flow direction, number of connecting ports and port size and port type ie. thread or flange type along with voltage requirements, voltage tolerance and if ATEX protection is required for potentially hazardous environments. So, its is wise to choose a good solenoid valve supplier who can help guide you through this process.

High Pressure Solenoid valves are available with metal to metal seat, PTFE to Metal seat with optional NBR, FKM and EPDM static sealing to suit most media applications. There are also options for open and closed position switches or sensors so process systems can monitor the solenoid valve position in real time, twin coil combinations to guarantee valve function should one coil fail, slow opening or closing to avoid system pressure shock waves, manual over ride functions for manual intervention and extended core tube options to isolate the solenoid coil from high temperature or cryogenic media temperatures.

Read more about high pressure valves here...

Direct acting miniature high-pressure solenoid valves.

Miniature high pressure solenoid valves typically have a very small orifice resulting in reduced flow but do have the advantages of being compact, lightweight and lower cost, typical port sizes from 1/8",1/4" and 3/8" BSP or NPT thread. These miniature high pressure solenoid valves will typically operate from vacuum or Zero pressure to upwards of 500 bar however typically be mounted in any direction, but ideally coil between vertical to horizontal.

Pressure assisted high-pressure solenoid valves.

High pressure servo or pressure assisted solenoid valves typically a floating piston or diaphragm design offering higher flow than direct acting compact solenoid valves as they have typically much larger orifice or flow path but will be much larger, heavier and more expensive than smaller direct acting compact versions.

Typical port sizes for high pressure solenoid valves range from 3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread of flange DN15,DN20,DN25,DN32,DN40 or DN50 and beyond. These high pressure assisted servo solenoid valves require a minimum differential pressure to operate usually a minimum between 0.5 to 10 bar, (i.e. the inlet pressure must be at least 0.5 to 10 bar higher than the outlet pressure) as the pressure difference is utilised via an internal pilot control circuit to control the movement of the main sealing piston or diaphragm against the main valve sealing face / orifice. These pilot / servo assisted high pressure solenoid valves typically must be mounted with the coil +/- 15 degrees of vertical.

Kick pilot or forced piston high-pressure solenoid valves.

Kick pilot or forced piston high-pressure solenoid valves combine the attributes of direct acting functionality along with pressure assistance. The piston is attached to the armature by a mechanical link so the solenoid valve will open regardless of system pressure differentials. However when there is pressure differential, this is used to help the opening and closing of a high-pressure solenoid valve, via the piston pilot circuit. A lack of pressure difference the armature will "kick" or "force" the piston into the required open or closed position. Again typically kick pilot high pressure solenoid valves must be mounted with the coil +/1 15 degrees to vertical.

Coaxial High Pressure Solenoid Valves.

The only exception to the rule are the high pressure coaxial range of solenoid valves, which offer direct acting function and high flow rates compared to solenoid valves and are more compact by design size for size and can control flow of media in both directions. The coaxial solenoid and coax pneumatically operated valves are an ideal solution for high-pressure systems and unlike other solenoid valves coax valves are suitable for contaminated or viscous thick media up to 600 centistokes and can be mounted vertically, horizontally or in any position. Additional advantages include manifold options, ATEX, open and closed position switches and custom made options easy manufactured to meet customer requirements.

Brass Miniature 2/2 Way Direct Acting High Pressure Solenoid Valves

AD6000 high pressure solenoid valve

Series: AD6000, AD6100,AD6200

Port: 1/8" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 1.2mm,1.6mm,2.0mm,3.0mm,4.0mm,5.0mm

Pressure: 0 to 150 bar maximum

Seal material: NBR,EPDM,FKM,HNBR or PTFE

Body material: brass

Media: air,water,gas,light oil,vacuum or steam

Temperature: ambient: -10°C to +50°C, media +180°C Max

Protection: IP65

Options: ATEX, manual over ride,silver shading ring,oil and grease free

AD8000  solenoid valve

Series: AD8000, AD8100,AD8200

Port: 1/4" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 1.2mm,1.6mm,2.0mm,3.0mm,4.0mm,5.0mm

Pressure: 0 to 150 bar maximum

Seal material: NBR,EPDM,FKM,HNBR or PTFE

Body material: brass

Media: air,water,gas,light oil,vacuum or steam

Temperature: ambient: -10°C to +50°C, media +180°C Max

Protection: IP65

Options: ATEX, manual over ride,silver shading ring,oil and grease free

compact solenoid valve

Series: WP and WF

Port: 1/8" or 1/4" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 0.8mm,1.0mm,1.2mm,1.5mm,2.5mm,3.0mm,4.0mm,5.0mm

Pressure: 0 to 200 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas,light oil,vacuum or steam

Temperature: ambient: -10°C to +50°C, media +100°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,2/2 way normally open,oil and grease free

Brass Miniature 2/2 Way Pressure Assisted High Pressure Solenoid Valves

SAP high pressure solenoid valve

Series: SAP

Port: 1/8",1/4" or 3/8" BSP or NPT thread

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 5.0mm

Pressure: 1 to 100 bar maximum

Seal material: NBR,EPDM,FKM,HNBR or PTFE

Body material: brass

Media: air,water,gas,light oil or steam

Temperature: ambient: -10°C to +50°C, media +180°C Max

Protection: IP65

Options: silver shading ring,oil and grease free

solenoid valve 1 to 200 bar brass

Series: 206244 and 206244-0

Port: 1/8" or 1/4" BSP or NPT thread

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 6.0mm

Pressure: 1 to 200 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +100°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,2/2 way normally open,oil and grease free

Brass 2/2 Way Pressure Assisted High Pressure Solenoid Valves

PU225H solenoid valve

Series: PU225H and NOPU225H

Port: 3/8",1/2",3/4" or 1" BSP or NPT thread

Function: 2/2 way normally closed

Operation: servo pressure assisted diaphragm

Orifice: 6.0mm or 13.0mm

Pressure: 0.5 to 25 bar maximum

Seal material: NBR,EPDM or FKM (all with nylon reinforcement)

Body material: brass

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +60°C, media +120°C Max

Protection: IP65

Options: ATEX EEx m II T4, 2/2 way normally open,oil and grease free

PU225X high pressure solenoid valve

Series: PU225X

Port: 3/8",1/2",3/4" or 1" BSP or NPT thread

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 13.0mm or 25.0mm

Pressure: 0.5 to 50 bar maximum

Seal material: PTFE and NBR

Body material: brass

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +60°C, media +90°C Max

Protection: IP65

Options: ATEX EEx m II T4,oil and grease free

SA high pressure solenoid valve

Series: SAH

Port: 3/8",1/2",3/4",1",11/4",11/2" or 2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 15.0mm to 50.0mm

Pressure: 0.5 to 40 bar maximum

Seal material: PTFE

Body material: brass

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +60°C, media +180°C Max

Protection: IP65

Options: ATEX EEx m II T4,oil and grease free

SA solenoid valve

Series: SAHH

Port: 3/8",1/2",3/4",1",11/4",11/2" or 2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 15.0mm to 50.0mm

Pressure: 0.5 to 80 bar maximum

Seal material: PTFE

Body material: brass

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +60°C, media +180°C Max

Protection: IP65

Options: oil and grease free

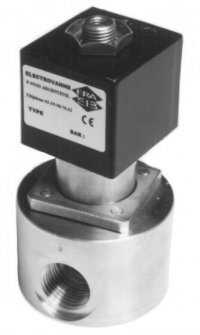

brass solenoid valve

Series: 212240 and 212240-0

Port: 3/8" or 1/2" BSP or NPT thread or flange

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 12.0mm

Pressure: 1 to 100 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +100°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,2/2 way normally open,oil and grease free

brass solenoid valve 1 to 100 bar

Series: 220240 and 220240-0

Port: 3/4" BSP or NPT thread or flange

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 20.0mm

Pressure: 1 to 100 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +100°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,2/2 way normally open,oil and grease free

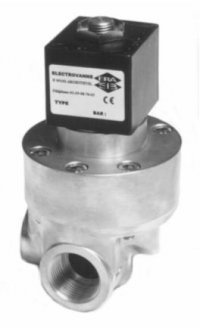

brass solenoid valve 1 to 100 bar

Series: 225240 and 225240-0

Port: 1" BSP or NPT thread or flange

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 25.0mm

Pressure: 1 to 100 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +100°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,2/2 way normally open,oil and grease free

 SA solenoid valve for higher pressures

Series: SAHHH

Port: 3/8" or 1/2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 15.0mm

Pressure: 0.5 to 120 bar maximum

Seal material: PTFE

Body material: brass

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +60°C, media +180°C Max

Protection: IP65

Options: oil and grease free

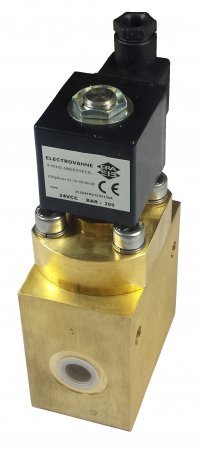

 brass solenoid valve for higher pressures

Series: 212247 and 212247-0

Port: 3/8",1/2" or 3/4" BSP or NPT thread or flange

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 12.0mm

Pressure: 10 to 300 bar maximum

Seal material: PTFE with NBR,EPDM or FKM

Body material: brass

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +60°C, media +100°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,oil and grease free,2/2 way normally open,90° degree between inlet and outlet

Brass 2/2 Way High Pressure Direct Acting Coaxial Solenoid Valves

brass coax solenoid valve 40 bar

Series: 270

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 40 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +180°C Max

Protection: IP65

Options: 2/2 way normally open,manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use.

brass coax solenoid valve 64 bar

Series: 271

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 64 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +180°C Max

Protection: IP65

Options: 2/2 way normally open,manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use.

brass coax solenoid valve 100 bar

Series: 272

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 100 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +180°C Max

Protection: IP65

Options: 2/2 way normally open,manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use.

Brass 3/2 Way High Pressure Direct Acting Coaxial Solenoid Valves

 high pressure coax solenoid valve 40 bar

Series: 370

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 3/2 way normally closed

Operation: direct acting

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 40 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +180°C Max

Protection: IP65

Options: manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use,3/2 way normally open,304 or 316 stainless steel.

high pressure coax solenoid valve 64 bar

Series: 371

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 3/2 way normally closed

Operation: direct acting

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 64 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +180°C Max

Protection: IP65

Options: manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use,3/2 way normally open,304 or 316 stainless steel.

Brass 2/2 Way High Pressure Direct Acting Coaxial Pneumatic Valves

high pressure coax pneumatic valve

Series: 280

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: pneumatic control via namur interface

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 64 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +100°C Max

Options: 2/2 way normally open,304 or 316 stainless steel,manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use.

high pressure coax pneumatic valve

Series: 281

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: pneumatic control via namur interface

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 120 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +100°C Max

Options: 2/2 way normally open,304 or 316 stainless steel,manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use.

high pressure coax pneumatic valve

Series: 282

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: pneumatic control via namur interface

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 160 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +100°C Max

Options: 2/2 way normally open,304 or 316 stainless steel,manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use.

Brass 3/2 Way High Pressure Direct Acting Coaxial Pneumatic Valves

 high pressure coax pneumatic valve

Series: 380

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 3/2 way normally closed

Operation: pneumatic control via namur interface

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 64 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +100°C Max

Options: 2/2 way normally open,304 or 316 stainless steel,manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use.

high pressure coax pneumatic valve

Series: 381

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 3/2 way normally closed

Operation: pneumatic control via namur interface

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 100 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: brass

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +100°C Max

Options: 2/2 way normally open,304 or 316 stainless steel,manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use.

Stainless Steel Miniature 2/2 Way Direct Acting High Pressure Solenoid Valves

high pressure stainless solenoid valve

Series: ADS6000, ADS6100,ADS6200

Port: 1/8" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 1.2mm,1.6mm,2.0mm,3.0mm,4.0mm,5.0mm

Pressure: 0 to 150 bar maximum

Seal material: NBR,EPDM,FKM,HNBR or PTFE

Body material: 316 stainless steel

Media: air,water,gas,light oil,vacuum or steam

Temperature: ambient: -10°C to +50°C, media +180°C Max

Protection: IP65

Options: ATEX, manual over ride,silver shading ring,oil and grease free

high pressure stainless solenoid valve

Series: ADS8000, ADS8100,ADS8200

Port: 1/4" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 1.2mm,1.6mm,2.0mm,3.0mm,4.0mm,5.0mm

Pressure: 0 to 150 bar maximum

Seal material: NBR,EPDM,FKM,HNBR or PTFE

Body material: 316 stainless steel

Media: air,water,gas,light oil,vacuum or steam

Temperature: ambient: -10°C to +50°C, media +180°C Max

Protection: IP65

Options: ATEX, manual over ride,silver shading ring,oil and grease free

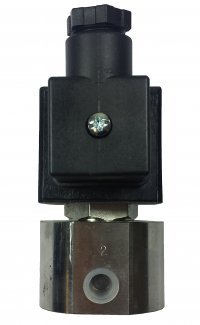

high pressure stainless solenoid valve

Series: EN52080

Port: 1/8" or 1/4" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 0.5mm or 0.6mm

Pressure: 0 to 400 bar maximum

Seal material: PEEK + FKM

Body material: stainless steel

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +100°C Max

Protection: IP65

Options: ATEX Eex d IIC T6,silver shading ring,oil and grease free

compact solenoid valve

Series: EN52081

Port: 1/8" or 1/4" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 0.5mm or 0.6mm

Pressure: 0 to 500 bar maximum

Seal material: PEEK + FKM

Body material: stainless steel

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +100°C Max

Protection: IP65

Options: ATEX Eex d IIC T6,silver shading ring,oil and grease free

Stainless Steel Miniature 2/2 Way Pressure Assisted High Pressure Solenoid Valves

compact solenoid valve for higher pressures

Series: SAPS

Port: 1/8",1/4" or 3/8" BSP or NPT thread

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 5.0mm

Pressure: 1 to 100 bar maximum

Seal material: NBR,EPDM,FKM,HNBR or PTFE

Body material: 316 stainless steel

Media: air,water,gas,light oil or steam

Temperature: ambient: -10°C to +50°C, media +180°C Max

Protection: IP65

Options: silver shading ring,oil and grease free

stainless solenoid valve for higher pressures 100 bar

Series: 206254 and 206254-0

Port: 1/8" or 1/4" BSP or NPT thread

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 6.0mm

Pressure: 1 to 200 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: stainless steel

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +100°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,2/2 way normally open,oil and grease free

Stainless Steel 2/2 Way Pressure Assisted High Pressure Solenoid Valves

stainless solenoid valve 1 to 100 bar

Series: 212250 and 212250-0

Port: 3/8" or 1/2" BSP or NPT thread or flange

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 12.0mm

Pressure: 1 to 100 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: stainless steel

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +100°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,2/2 way normally open,oil and grease free

stainless solenoid valve for higher pressures

Series: 220250 and 220250-0

Port: 3/4" BSP or NPT thread or flange

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 20.0mm

Pressure: 1 to 100 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: stainless steel

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +100°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,2/2 way normally open,oil and grease free

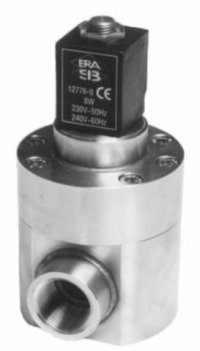

stainless solenoid valve to 100 bar

Series: 225250 and 225250-0

Port: 1" BSP or NPT thread or flange

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 25.0mm

Pressure: 1 to 100 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: stainless steel

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +100°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,2/2 way normally open,oil and grease free

 stainless steel solenoid valve 10 to 300 bar

Series: 212256,212257,212258 and 212259

Port: 3/8",1/2" or 3/4" BSP or NPT thread or flange

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 12mm

Pressure: 10 to 300 bar maximum

Seal material: PTFE with FKM or Voltalef with FKM

Body material: stainless steel

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +150°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,ATEX EEx m II T4,2/2 way normally open,oil and grease free, 90° degree between inlet and outlet ports,manual over ride.

stainless steel solenoid valve for higher pressures

Series: 218256,218257,218258 and 218259

Port: 1" BSP or NPT thread or flange

Function: 2/2 way normally closed

Operation: servo pressure assisted piston

Orifice: 18mm

Pressure: 10 to 300 bar maximum

Seal material: PTFE with FKM or Voltalef with FKM

Body material: stainless steel

Media: air,water,gas or light oil

Temperature: ambient: -10°C to +50°C, media +150°C Max

Protection: IP65

Options: ATEX EEx d IIC T6,ATEX EEx m II T4,2/2 way normally open,oil and grease free, 90° degree between inlet and outlet ports.

 stainless coax solenoid valve 40 bar

Series: 270

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 40 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: 304 stainless steel

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +180°C Max

Protection: IP65

Options: 2/2 way normally open,316 stainless steel,manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use.

stainless coax solenoid valve 64 bar

Series: 271

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 64 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: 304 stainless steel

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +180°C Max

Protection: IP65

Options: 2/2 way normally open,316 stainless steel,manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use.

stainless coax solenoid valve 100 bar

Series: 272

Port: 1/4",3/8",1/2",3/4",1",11/4",11/2" and 2" BSP or NPT thread

Function: 2/2 way normally closed

Operation: direct acting

Orifice: 10mm,15mm,20mm,25mm,32mm,40mm and 50mm

Pressure: 0 to 100 bar maximum

Seal material: NBR,EPDM,FKM or PTFE

Body material: 304 stainless steel

Media: air,water,gas,vacuum,oil,thick liquids up to 600CST

Temperature: ambient: -10°C to +60°C, media +180°C Max

Protection: IP65

Options: 2/2 way normally open,316 stainless steel,manual over ride,open and closed position feed back switches,manifold mounting,degreased for oxygen use.

Articles By Category

A catalouge of articles covering all aspects of solenoid valves
